Technical data (manufacturer information, German terms)
| l1 (Form AF / AN) | 43 |
|---|
| l2 | 80 |
|---|
| Form | AN - Scharnierflügel außenliegend, mit Führungssteg |
|---|
| Kennzeichen | A - ohne Bohrungen |
|---|
| Oberfläche | EL - eloxiert, naturfarben |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d2 | 14 |
|---|
| d3 | 8 |
|---|
| l3 | 36 |
|---|
| m1 Form AF / AN | 20,4 |
|---|
| m2 | 50 |
|---|
| m4 | 150 |
|---|
| n | 8 |
|---|
| s1 | 3,5 |
|---|
| s2 | 6,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,052 kg |
|---|

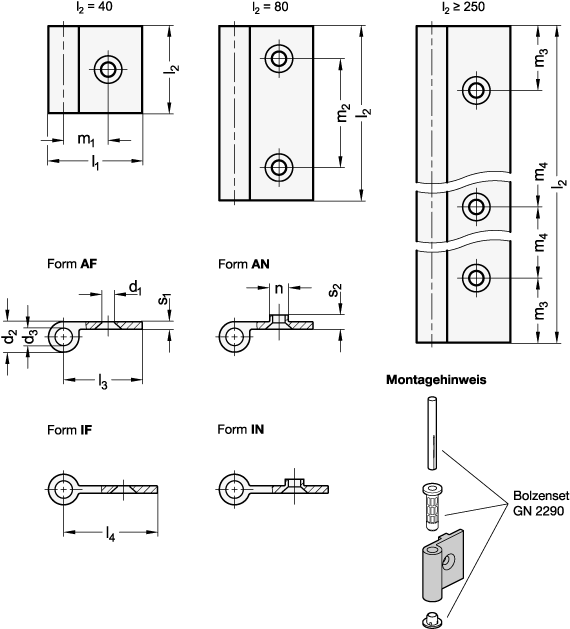

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 2291 |
|---|
| Order designation | GN 2291-43-80-AN-A-EL |
|---|
| EAN | 4045525494589 |
|---|
| Manufacturer designation (German) | Scharnierflügel für Aluminiumprofile / Flächenelemente |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76169990 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
