Technical data (manufacturer information, German terms)
| Breite l1 | 49 |
|---|
| Länge l2 | 101 |
|---|
| Werkstoff | ZD - Zink-Druckguss |
|---|
| l3 | 30 |
|---|
| l4 | 81 |
|---|
| l5 schmaler Scharnierflügel | 15 |
|---|
| breiter Scharnierflügel | 30 |
|---|
| h1 | 12 |
|---|
| h2 | 22,5 |
|---|
| m1 | 71 |
|---|
| m2 | 17 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,267 kg |
|---|

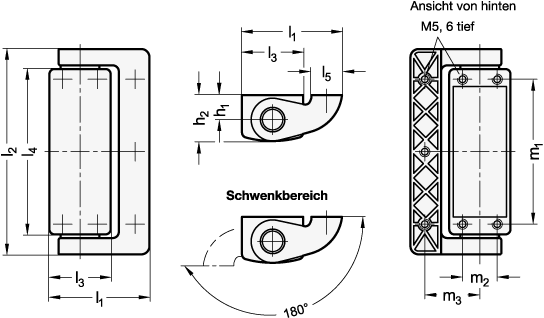

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 139.2 |
|---|
| Order designation | GN 139.2-49-101 |
|---|
| EAN | 4045525819559 |
|---|
| Manufacturer designation (German) | Scharniere ohne Schalter, Zink-Druckguss |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83021000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
