Technical data (manufacturer information, German terms)
| Spann-Durchmesser d1 | 8 |
|---|
| Spann-Durchmesser d2 | 8 |
|---|
| Form | A - mit Zylinderschraube DIN 912 |
|---|
| Oberfläche | MT - matt, gleitgeschliffen |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d3 | M 6 |
|---|
| Durchmesser d4 | 28 |
|---|
| l1 | 33 |
|---|
| l2 | 35 |
|---|
| l3 | 45 |
|---|
| l4 | 14 |
|---|
| l5 | 5 |
|---|
| m | 13 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,051 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 490 |
|---|
| Order designation | GN 490-8-8-A-MT |
|---|
| EAN | 4045525861138 |
|---|

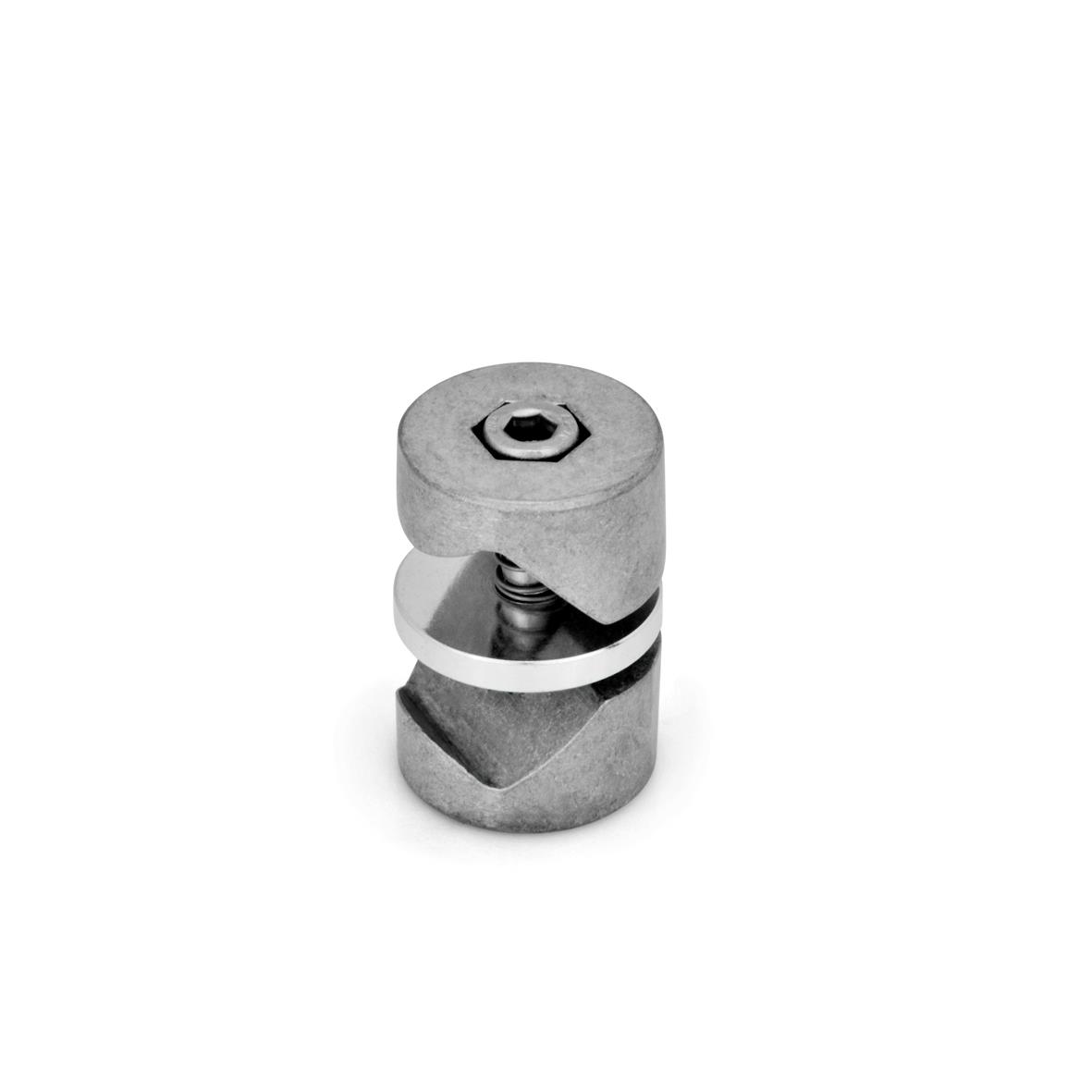

| Manufacturer designation (German) | Gelenk-Klemmverbinder |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 76090000 |
|---|
| eCl@ss 5.1.4 | 90909090 |
|---|
