Technical data (manufacturer information, German terms)
| Werkstoff | PA - Polyamid |
|---|
| l1 | 270 |
|---|
| l2 | 15 |
|---|
| l3 | 7,5 |
|---|
| d | 14,5 |
|---|
| Roller per track | 18 |
|---|
| Belastbarkeit | 13330 |
|---|
| x2 | 200 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,098 kg |
|---|

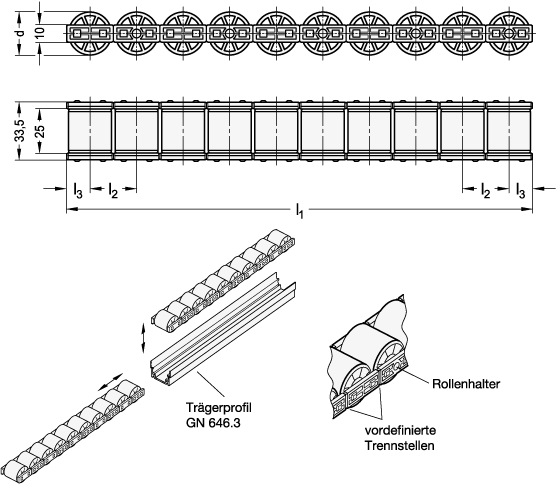

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 646.1 |
|---|
| Order designation | GN 646.1-270-15-PA |
|---|
| EAN | 4045525388390 |
|---|
| Manufacturer designation (German) | Rollenleisten für Rollschienen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84832000 |
|---|
| eCl@ss 5.1.4 | 36120407 |
|---|
