Technical data (manufacturer information, German terms)
| Breite b | 45 |
|---|
| Länge l1 | 59 |
|---|
| Gewinde d1 | M 5 |
|---|
| Form | A - mit 1 Innengewinde |
|---|
| Farbe | WS - weiß |
|---|
| Magnetwerkstoff | ND - NdFeB |
|---|
| Durchmesser d2 | 10 |
|---|
| h1 | 8,5 |
|---|
| h2 | 6,2 |
|---|
| l2 | 27 |
|---|
| t | 9 |
|---|
| Nennhaftkräfte in N Form A | 240 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,085 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 57.1 |
|---|
| Order designation | GN 57.1-45-59-M5-A-WS |
|---|
| EAN | 4045525880405 |
|---|

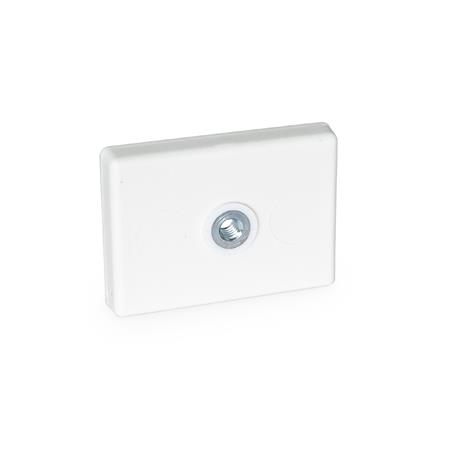

| Manufacturer designation (German) | Haltemagnete, mit Innengewinde, mit Gummiummantelung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 85051110 |
|---|
| eCl@ss 5.1.4 | 21020801 |
|---|
