Technical data (manufacturer information, German terms)
| Magnetwerkstoff | ND - NdFeB |
|---|
| Durchmesser d1 | 18 |
|---|
| Farbe | SW - schwarz |
|---|
| d2 | M 4 |
|---|
| h | 6 |
|---|
| t1 | 3,5 |
|---|
| t2 | 0,8 |
|---|
| Nennhaftkräfte in N | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,006 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 51.5 |
|---|
| Order designation | GN 51.5-ND-18-SW |
|---|
| EAN | 4045525723405 |
|---|

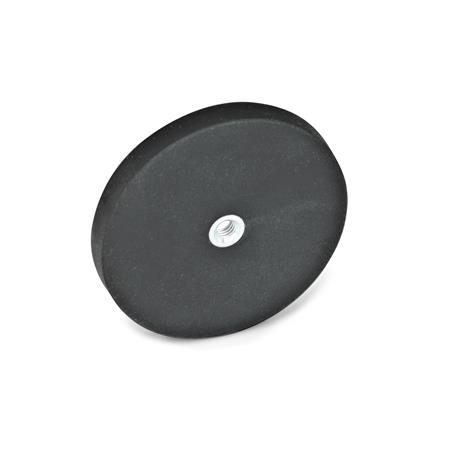

| Manufacturer designation (German) | Haltemagnete mit Innengewinde, mit Gummiummantelung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 85051110 |
|---|
| eCl@ss 5.1.4 | 21020801 |
|---|
