Technical data (manufacturer information, German terms)
| Magnetwerkstoff | HF - Hartferrit |
|---|
| Durchmesser d1 | 36 |
|---|
| Form | B - mit Ringöse |
|---|
| d2 Form A | 13,5 |
|---|
| Form B | 12,5 |
|---|
| d3 | 3,5 |
|---|
| h1 Form A | 32 |
|---|
| h2 | 7,7 |
|---|
| Nennhaftkräfte in N | 100 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,045 kg |
|---|

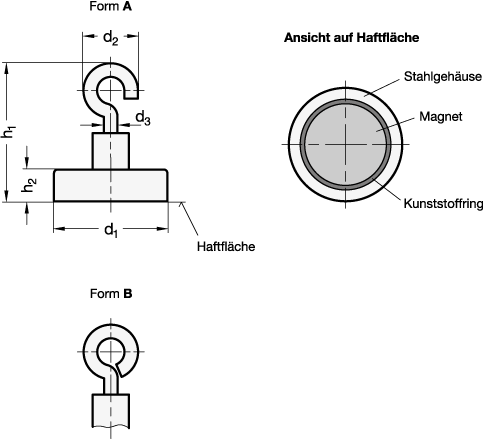

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 50.6 |
|---|
| Order designation | GN 50.6-HF-36-B |
|---|
| EAN | 4045525723603 |
|---|
| Manufacturer designation (German) | Haltemagnete mit Haken / mit Ringöse |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 85051190 |
|---|
| eCl@ss 5.1.4 | 21020801 |
|---|
