Technical data (manufacturer information, German terms)
| Werkstoff | AL - Aluminium |
|---|
| Griffdurchmesser d1 | 18 |
|---|
| Gewinde d2 | M 6 |
|---|
| d3 | 10 |
|---|
| d4 | 14,5 |
|---|
| l1 | 56 |
|---|
| l2 | 13 |
|---|
| l3 ≈ | 2,5 |
|---|
| l4 | 19 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,050 kg |
|---|

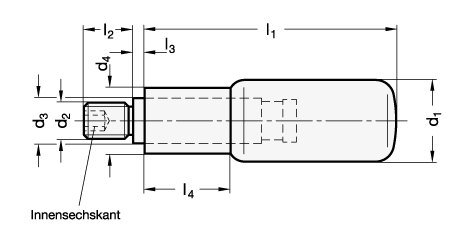

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 798 |
|---|
| Order designation | GN 798-AL-18-M6 |
|---|
| EAN | 4045525374850 |
|---|
| Manufacturer designation (German) | Drehbare Zylindergriffe, Kunststoff / Aluminium, Achsteil Stahl, Montage von der Rückseite |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879090 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
