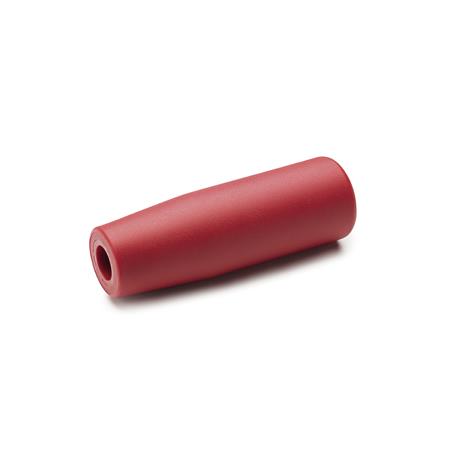

Zylinderknöpfe GN 519.2, Thermoplast – Ganter GN 519.2-26-M10-RT
Dimensional drawing Ganter GN 519.2-26-M10-RT
Preview: Zylinderknöpfe GN 519.2, Thermoplast – Ganter GN 519.2-26-M10-RT
Preview: Dimensional drawing Ganter GN 519.2-26-M10-RT
Zylinderknöpfe GN 519.2, Thermoplast
Zylinderknöpfe GN 519.2, Thermoplast – Ganter GN 519.2-26-M10-RT
Dimensional drawing Ganter GN 519.2-26-M10-RT
Mobile Preview: Zylinderknöpfe GN 519.2, Thermoplast – Ganter GN 519.2-26-M10-RT
Mobile Preview: Dimensional drawing Ganter GN 519.2-26-M10-RT

Zylinderknöpfe GN 519.2, Thermoplast

Product No.:
519.2-26-M10-RT
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d126
    Gewinde d2M 10
    FarbeRT - rot, RAL 3000, matt
    WerkstoffKU - Kunststoff
    Farbe RTM 10
    d321
    l180
    l2 min.55
    l37
    RoHSJa
    Gewicht0,040 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 519.2
    Order designationGN 519.2-26-M10-RT
    EAN4045525066519
    Manufacturer designation (German)Zylinderknöpfe
    Order unitPiece
    Customs tariff number39269097
    eCl@ss 5.1.423010101
