Technical data (manufacturer information, German terms)
| Schalenbreite l1 | 130 |
|---|
| Farbe | SG - schwarzgrau, RAL 7021, matt |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| b1 | 59 |
|---|
| b2 | 31 |
|---|
| b3 | 41 |
|---|
| b4 | 48 |
|---|
| h1 | 29,5 |
|---|
| h2 | 3 |
|---|
| l2 | 100 |
|---|
| l3 | 124 |
|---|
| s | 1 ... 5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,097 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 739 |
|---|
| Order designation | GN 739-130-SG |
|---|
| EAN | 4045525462946 |
|---|

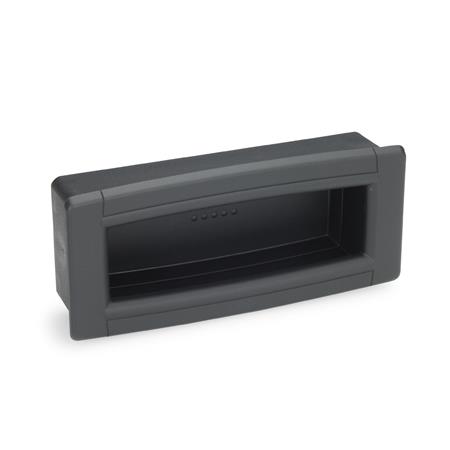

| Manufacturer designation (German) | Griffmulden, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
