Technical data (manufacturer information, German terms)
| Griffbreite b1 | 92 |
|---|
| Farbe | SG - schwarzgrau, RAL 7021, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| b2 | 76 |
|---|
| b3 | 83 |
|---|
| h1 | 37 |
|---|
| h2 | 25 |
|---|
| l1 | 19 |
|---|
| l2 | 17 |
|---|
| l3 | 17,4 |
|---|
| F1 in N | 1800 |
|---|
| F2 in N | 500 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,020 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 731.1 |
|---|
| Order designation | GN 731.1-92-SG |
|---|
| EAN | 4045525881853 |
|---|

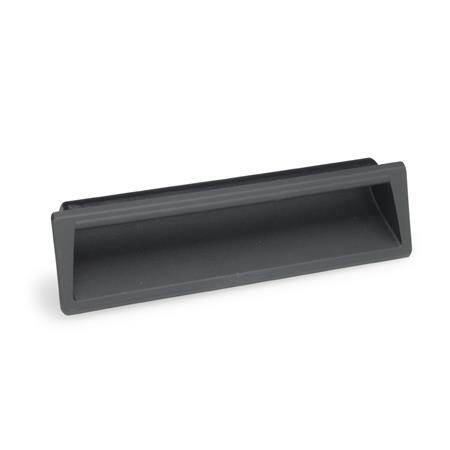

| Manufacturer designation (German) | Griffschalen zum Einklipsen, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
