Spannmuttern GN 99.6, Edelstahl

Product No.:
99.6-63-M8
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Grifflänge l163
    Anschlussgewinde d1M 8
    GriffkoerpermaterialNI - Edelstahl
    d216
    d310
    h112,5
    h2 ≈30,5
    l2 ≈60
    RoHSJa
    Gewicht0,045 kg

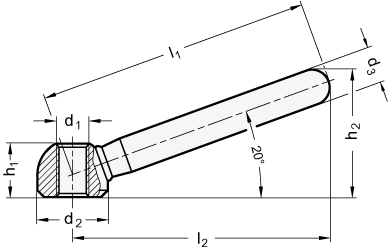

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 99.6
    Order designationGN 99.6-63-M8
    EAN4045525424401
    Manufacturer designation (German)Spannmuttern, Edelstahl 1.4301
    Order unitPiece
    Customs tariff number73181639
    eCl@ss 5.1.423110710
