Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 32 |
|---|
| Gewinde d2 (Form E) | M 5 |
|---|
| Form | E - mit Gewinde-Sackloch |
|---|
| Oberfläche | PL - hochglanzpoliert |
|---|
| Werkstoff | NI - Edelstahl-Feinguss |
|---|
| d4 | 12 |
|---|
| h1 ≈ | 21 |
|---|
| h2 ≈ | 12 |
|---|
| t1 min. | 10 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,076 kg |
|---|

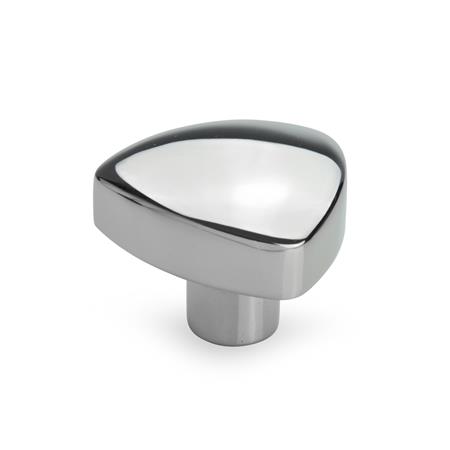

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 5339.5 |
|---|
| Order designation | GN 5339.5-32-M5-E-PL |
|---|
| EAN | 4045525488502 |
|---|
| Manufacturer designation (German) | Dreikantgriffe, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181692 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
