Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 46 |
|---|
| Gewinde d2 | M 6 |
|---|
| Form | E - mit Gewinde-Sackloch |
|---|
| Oberfläche | MT - matt gestrahlt |
|---|
| Werkstoff | NF - Edelstahl-Feinguss |
|---|
| d3 | 13 |
|---|
| d4 | 6,5 |
|---|
| b | 6 |
|---|
| h1 | 22,5 |
|---|
| h2 | 6 |
|---|
| t1 min. | 12 |
|---|
| t2 | 10 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,041 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 834 |
|---|

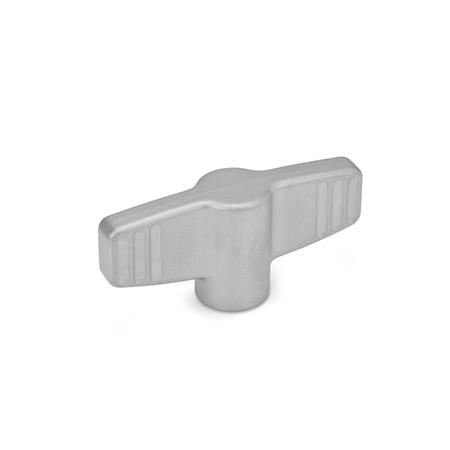

| Order designation | GN 834-46-M6-E-MT |
|---|
| EAN | 4045525673649 |
|---|
| Manufacturer designation (German) | Flügelmuttern, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181639 |
|---|
| eCl@ss 5.1.4 | 23110710 |
|---|
