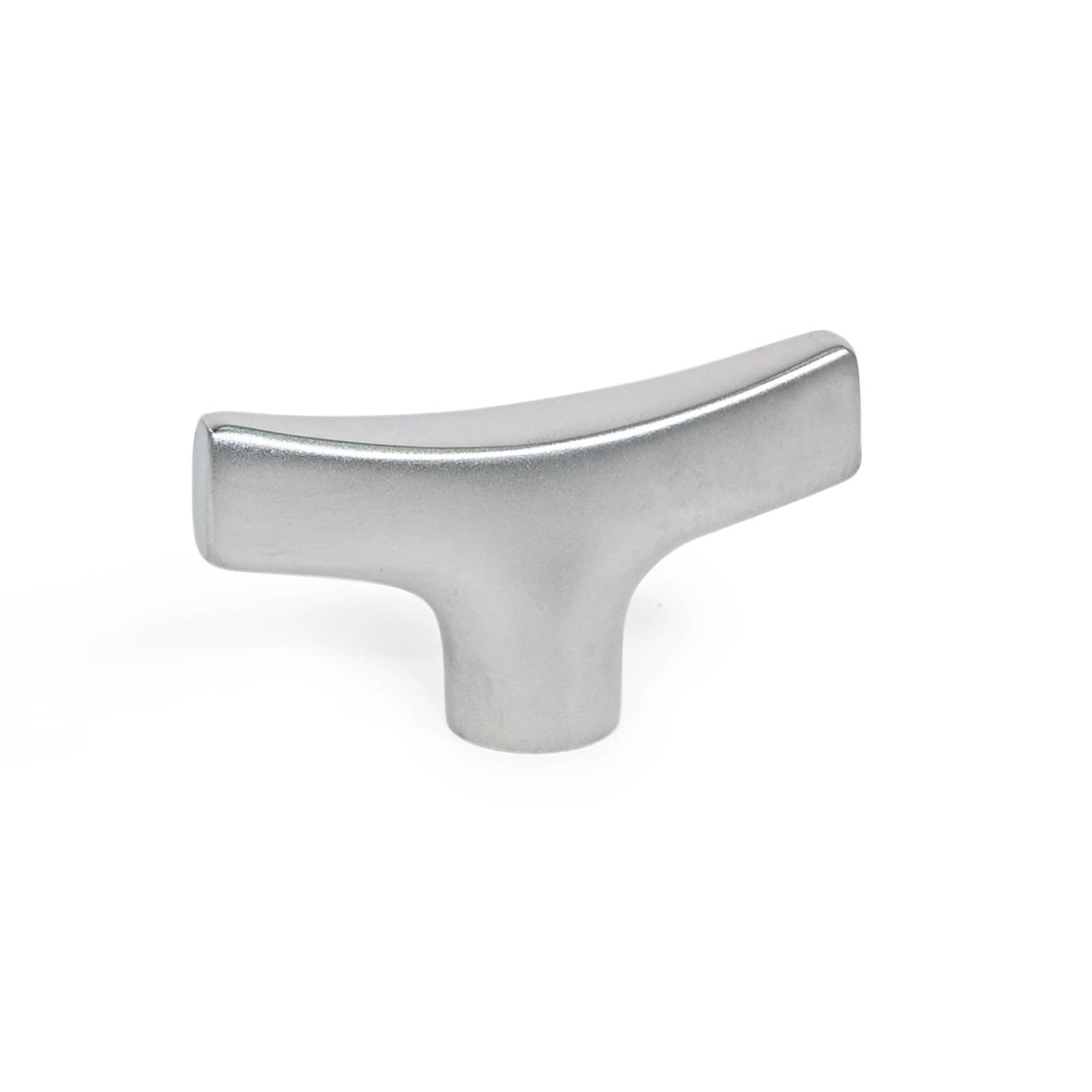

Flügelmutter GN 8340, Edelstahl – Ganter GN 8340-32-M6-MT

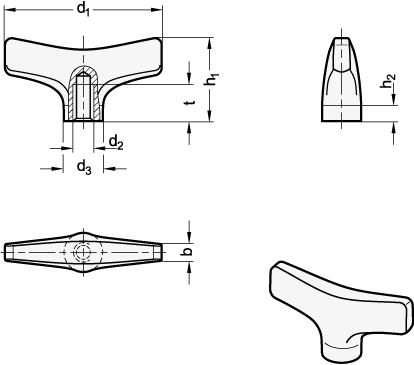

Dimensional drawing Ganter GN 8340-32-M6-MT
Preview: Flügelmutter GN 8340, Edelstahl – Ganter GN 8340-32-M6-MT
Preview: Dimensional drawing Ganter GN 8340-32-M6-MT
Flügelmutter GN 8340, Edelstahl
Flügelmutter GN 8340, Edelstahl – Ganter GN 8340-32-M6-MT
Dimensional drawing Ganter GN 8340-32-M6-MT
Mobile Preview: Flügelmutter GN 8340, Edelstahl – Ganter GN 8340-32-M6-MT
Mobile Preview: Dimensional drawing Ganter GN 8340-32-M6-MT

Flügelmutter GN 8340, Edelstahl

Product No.:
8340-32-M6-MT
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d132
    Gewinde d2M 6
    OberflächeMT - matt gestrahlt
    WerkstoffA4 - Edelstahl
    b4
    d39
    h118
    h2 ≈3
    t min.9
    RoHSJa
    Gewicht0,015 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 8340
    Order designationGN 8340-32-M6-MT
    EAN4045525846609
    Manufacturer designation (German)Flügelmuttern, Edelstahl
    Order unitPiece
    Customs tariff number73181639
    eCl@ss 5.1.423110710
