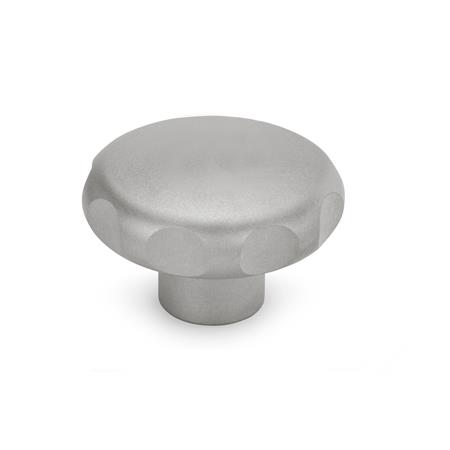

Sterngriffe GN 5335.4, Edelstahl A4, Werkstoff Nr. 1.4404 (A4) – Ganter GN 5335.4-40-M8-E
Dimensional drawing Ganter GN 5335.4-40-M8-E
Preview: Sterngriffe GN 5335.4, Edelstahl A4, Werkstoff Nr. 1.4404 (A4) – Ganter GN 5335.4-40-M8-E
Preview: Dimensional drawing Ganter GN 5335.4-40-M8-E
Sterngriffe GN 5335.4, Edelstahl A4, Werkstoff Nr. 1.4404 (A4)
Sterngriffe GN 5335.4, Edelstahl A4, Werkstoff Nr. 1.4404 (A4) – Ganter GN 5335.4-40-M8-E
Dimensional drawing Ganter GN 5335.4-40-M8-E
Mobile Preview: Sterngriffe GN 5335.4, Edelstahl A4, Werkstoff Nr. 1.4404 (A4) – Ganter GN 5335.4-40-M8-E
Mobile Preview: Dimensional drawing Ganter GN 5335.4-40-M8-E

Sterngriffe GN 5335.4, Edelstahl A4, Werkstoff Nr. 1.4404 (A4)

Product No.:
5335.4-40-M8-E
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d140
    Gewinde d2M 8
    FormE - mit Gewinde-Sackloch
    WerkstoffNI - Edelstahl
    d418
    h130,5
    h215
    t1 min.15
    t213
    RoHSJa
    Gewicht0,140 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 5335.4
    Order designationGN 5335.4-40-M8-E
    EAN4045525919136
    Manufacturer designation (German)Edelstahl-Sterngriffe, Werkstoff Nr. 1.4404 (A4)
    Order unitPiece
    Customs tariff number83024900
    eCl@ss 5.1.423010102
