Technical data (manufacturer information, German terms)
| Gewinde d | M 8 |
|---|
| Breite b | 40 |
|---|
| Form | GA - mit 2 Befestigungsgewinden für Aufsatzbacken |
|---|
| Werkstoff | ST - Stahl |
|---|
| a Form GA Form GL min. | 39,5 |
|---|
| max. | 44,5 |
|---|
| Form RF min. | 34,5 |
|---|
| max. | 39,5 |
|---|
| h1 | 15 |
|---|
| h2 | 4,5 |
|---|
| h3 Form GA | 7,5 |
|---|
| Länge l max. | 15 |
|---|
| m Form GA | 20 |
|---|
| Spannkraft pro Spannbacke in kN | 15 |
|---|
| max. Anzugsdrehmoment in Nm | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,181 kg |
|---|

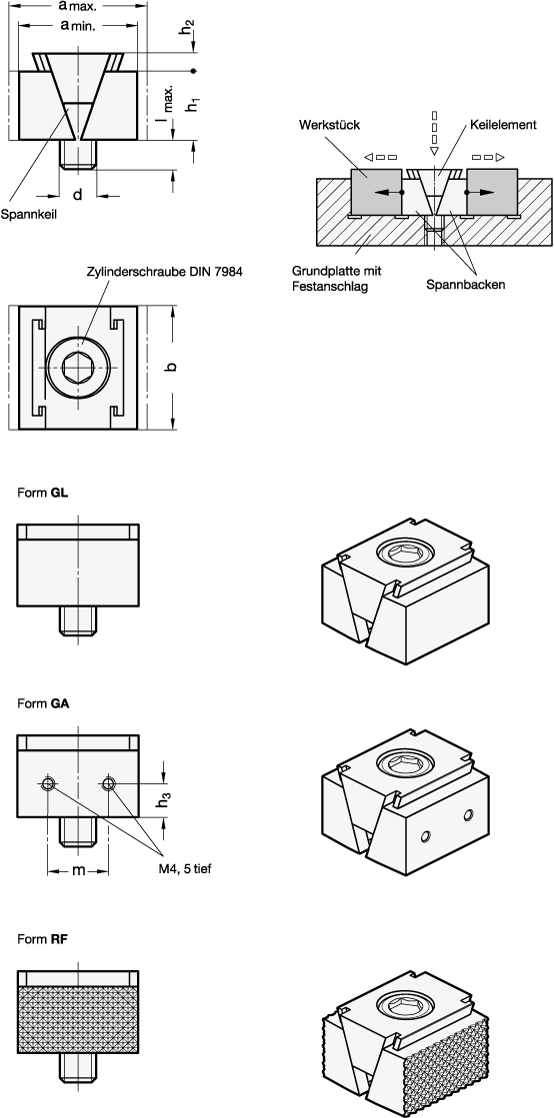

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 920.1 |
|---|
| Order designation | GN 920.1-M8-40-GA |
|---|
| EAN | 4045525749108 |
|---|
| Manufacturer designation (German) | Keilspanner, Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84662020 |
|---|
| eCl@ss 5.1.4 | 21020790 |
|---|
