Technical data (manufacturer information, German terms)
| Bolzendurchmesser d1 | 6 |
|---|
| Form | A - mit Knopf, ohne Kontermutter |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | M 12 x 1,5 |
|---|
| d3 | 25 |
|---|
| d4 | M 6 |
|---|
| l1 ≈ | 54,5 |
|---|
| l2 | 6 |
|---|
| l3 | 26 |
|---|
| l4 | 10 |
|---|
| l5 | 8 |
|---|
| Federdruck in N ≈ Anfang | 9 |
|---|
| Ende | 24 |
|---|
| Artikel-Nr. Schraubendreher | 613.1-6 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,026 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 613 |
|---|
| Order designation | GN 613-6-A |
|---|
| EAN | 4045525312074 |
|---|

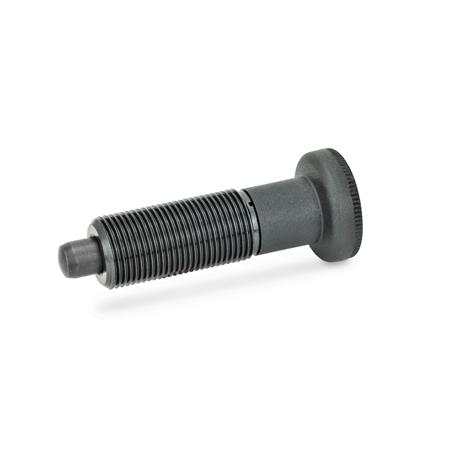

| Manufacturer designation (German) | Rastbolzen, Kunststoff-Knopf |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
