Technical data (manufacturer information, German terms)
| Werkstoff | A4 - Edelstahl-Feinguss |
|---|
| Bolzendurchmesser d1 | 20 |
|---|
| Vierkant s (Form A / AU) | 30 |
|---|
| Form | AU - Vierkant, Riegel verschraubt, demontierbar |
|---|
| Bolzendurchmesser | 20 |
|---|
| l1 ≈ | 83 |
|---|
| l2 | 20 |
|---|
| l3 | 54 |
|---|
| l4 | 55 |
|---|
| sw Form AU / RU | 4 |
|---|
| Federdruck in N ≈ Anfang | 22 |
|---|
| Ende | 70 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,535 kg |
|---|

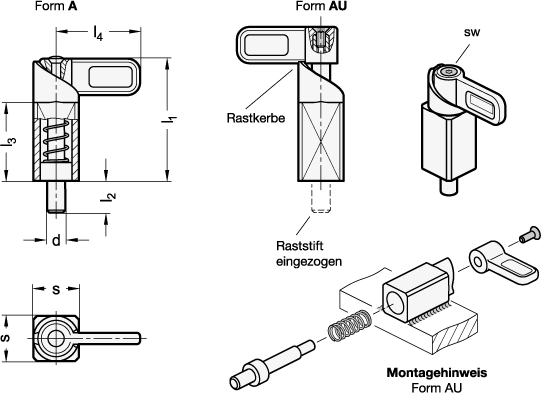

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 722.1 |
|---|
| Order designation | GN 722.1-20-30-AU-A4 |
|---|
| EAN | 4045525585928 |
|---|
| Manufacturer designation (German) | Federriegel, Edelstahl, zum Anschweißen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181900 |
|---|
| eCl@ss 5.1.4 | 23100190 |
|---|
