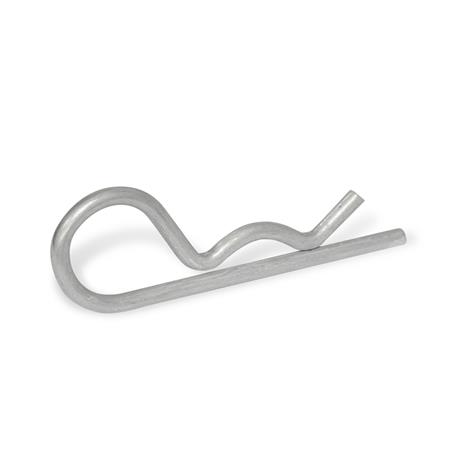

Federstecker GN 1024, Edelstahl – Ganter GN 1024-NI-4-E
Dimensional drawing Ganter GN 1024-NI-4-E
Preview: Federstecker GN 1024, Edelstahl – Ganter GN 1024-NI-4-E
Preview: Dimensional drawing Ganter GN 1024-NI-4-E
Federstecker GN 1024, Edelstahl
Federstecker GN 1024, Edelstahl – Ganter GN 1024-NI-4-E
Dimensional drawing Ganter GN 1024-NI-4-E
Mobile Preview: Federstecker GN 1024, Edelstahl – Ganter GN 1024-NI-4-E
Mobile Preview: Dimensional drawing Ganter GN 1024-NI-4-E

Federstecker GN 1024, Edelstahl

Product No.:
1024-NI-4-E
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    FormE - mit einfacher Windung
    d14
    WerkstoffNI - Edelstahl
    Außendurchmesser d216 ... 20
    d3 empf. Aufnahme-Ø4,5
    h27
    l174
    l244
    l330
    l448
    Kräfte in N ≈ Montage210
    Demontage170
    bei Bolzen-Ø20
    RoHSJa
    Gewicht0,016 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 1024
    Order designationGN 1024-NI-4-E
    EAN4045525030398
    Manufacturer designation (German)Federstecker, Edelstahl
    Order unitPiece
    Customs tariff number73209090
    eCl@ss 5.1.423100402
