Technical data (manufacturer information, German terms)
| Werkstoff | ZD - Zink-Druckguss |
|---|
| Breite l1 | 40 |
|---|
| Länge l2 (lang) | 65 |
|---|
| Form | A - Befestigung von der Rückseite |
|---|
| Farbe | SW - schwarz, RAL 9005, strukturmatt |
|---|
| d1 | M 5 |
|---|
| d2 | 5 |
|---|
| h1 | 15 |
|---|
| h2 | 9 |
|---|
| l4 | 54 |
|---|
| l5 | 12 |
|---|
| l6 | 18 |
|---|
| m1 | 25 |
|---|
| m3 | 22,5 |
|---|
| t | 6 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,112 kg |
|---|

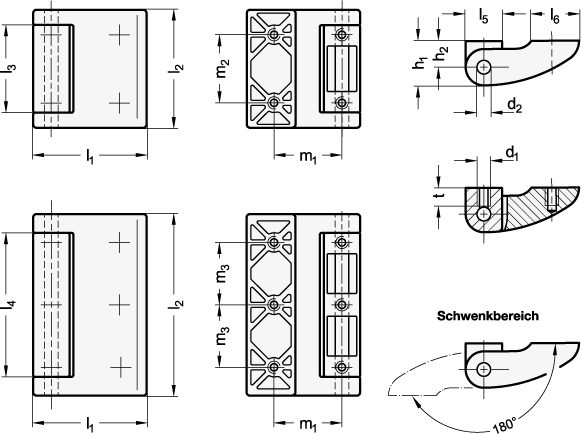

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 138 |
|---|
| Order designation | GN 138-ZD-40-65-A-SW |
|---|
| EAN | 4045525568303 |
|---|
| Manufacturer designation (German) | Scharniere, Zink-Druckguss |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83021000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
