Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Breite l1 | 50 |
|---|
| Länge l2 | 50 |
|---|
| Form | A - mit Bohrungen für Senkschrauben |
|---|
| Oberfläche | GS - matt gestrahlt |
|---|
| d1 | 6,3 |
|---|
| d2 | 6 |
|---|
| d3 | 9,5 |
|---|
| d4 empf. Aufnahme-Ø | 10 |
|---|
| h1 | 12,5 |
|---|
| h2 | 6 |
|---|
| h3 | 6,5 |
|---|
| h4 | 2 |
|---|
| h5 | 13 |
|---|
| l3 | 21 |
|---|
| m1 | 30 |
|---|
| m2 | 30 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,112 kg |
|---|

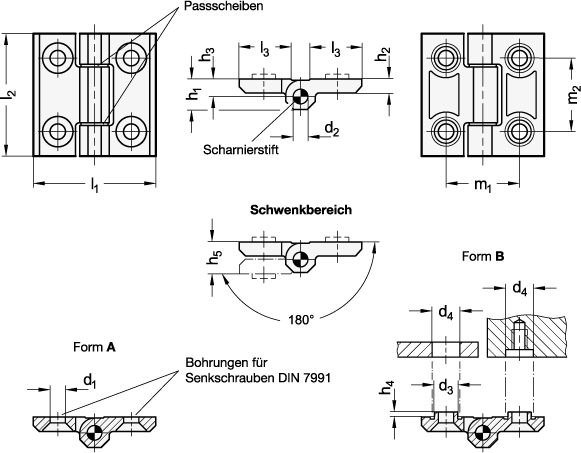

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 237.3 |
|---|
| Order designation | GN 237.3-NI-50-50-A-GS |
|---|
| EAN | 4045525538382 |
|---|
| Manufacturer designation (German) | Schwerlastscharniere, Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83021000 |
|---|
| eCl@ss 5.1.4 | 23250304 |
|---|
